Key Takeaways
- A true 42U cabinet manufacturer controls sheet metal fabrication, finishing and assembly, while resellers and basic fabricators lack engineering depth and integration scope.
- AI-driven data centers require reinforced 42U cabinets with higher load capacity, advanced airflow management and liquid-cooling readiness beyond standard off-the-shelf racks.
- Evaluating manufacturers across technical capabilities, integration scope, quality and compliance, scalability, supply-chain reliability and total value reduces program risk and cost.
- Vertically integrated U.S. manufacturers with DFM collaboration, ISO 9001:2015 and AS9100D certifications and agile production cells support schedule reliability and design refinement for high-density deployments.
- Partner with Fabcon for custom 42U enclosures backed by in-house engineering, certified quality systems and end-to-end accountability.
Standard 42U Dimensions in AI-Focused Data Centers
The 42U form factor follows EIA-310-E specifications, which define 19-inch rail spacing as the industry standard for rack-mounted equipment. This standard governs mounting hole patterns, rail depth and overall cabinet geometry across enterprise, colocation and government deployments.
Width and depth vary by application. Standard widths run 600 mm or 800 mm. Depth ranges from 900 mm to 1,200 mm for most configurations. AI-driven programs increasingly require deeper frames to accommodate GPU servers and cabling overhead.
AI racks typically contain multiple GPUs per server, which increases equipment weight and thermal output. This trend pushes operators toward reinforced 42U designs with higher load capacity rather than standard configurations. The 42U segment leads the U.S. market because it aligns with existing data center footprints and supports ergonomic access and installation safety as customization requirements grow.
Manufacturers that understand these dimensional constraints collaborate on design before fabrication begins. Early collaboration reduces rework and helps ensure the finished cabinet fits the intended environment. Dimensions alone do not define cabinet performance, because changing equipment profiles drive new structural and cooling requirements.
Request dimensional guidance for custom 42U enclosures built to specific structural and layout requirements.
Weight Capacity and Cooling Requirements for AI Racks
Traditional U.S. data center deployments operated at lower power levels per rack, while AI-driven installations now exceed those values and can reach well above that threshold. This shift requires cabinets engineered for higher structural loads, advanced airflow management and liquid-cooling readiness.
GPU clusters in AI deployments draw significantly more power per rack than traditional server configurations. The GPU density mentioned earlier translates directly to cooling infrastructure. Operators are retrofitting facilities to accommodate liquid-cooling distribution, high-amperage busways and rack-level telemetry that standard off-the-shelf cabinets cannot support.
U.S. operators are upgrading to rack systems with better airflow management, liquid-cooling readiness and higher-capacity power distribution as common customization priorities for AI workloads and GPU clusters. These thermal and power upgrades must accommodate diverse hardware. Buyers increasingly request vendor-agnostic rails, busbars and quick-disconnect fittings so cabinets can support multiple server brands and mixed hardware environments without redesign for each new equipment generation.
A manufacturer with in-house structural engineering and fabrication capability addresses these requirements at the design stage rather than after production begins. Early structural and thermal planning supports safe loading, efficient cooling and reliable operation.
Discuss high-density rack needs with Fabcon for 42U cabinets engineered for demanding power and cooling profiles.
Six-Criteria Framework for Selecting 42U Cabinet Manufacturers
Selecting a 42U cabinet manufacturer benefits from a structured evaluation across six criteria: technical capabilities, integration scope, quality and compliance, scalability and flexibility, supply-chain reliability and total value. Each criterion addresses a distinct risk category that affects program cost, schedule and performance.
Technical capabilities determine whether the manufacturer can produce the enclosure to specification as the baseline requirement. Production capability alone does not cover program needs. Integration scope determines how many vendors the buyer must manage, while quality and compliance determine whether the product meets infrastructure-critical standards. The remaining criteria address long-term program health. Scalability and flexibility determine whether the manufacturer can grow with the program, supply-chain reliability determines schedule predictability and total value accounts for DFM collaboration, vendor consolidation and downstream cost avoidance.
OEMs building data center infrastructure now require fabricators that provide in-house forming, welding, machining and assembly plus scheduling flexibility to avoid delays from fragmented supply chains. Applying this six-criteria framework helps procurement and engineering teams identify manufacturers that meet those requirements. The following sections examine each criterion in detail, starting with the technical foundation that supports reliable execution.
See how Fabcon aligns with this six-criteria framework for custom 42U programs.
Technical Capabilities and Integration Scope for 42U Builds

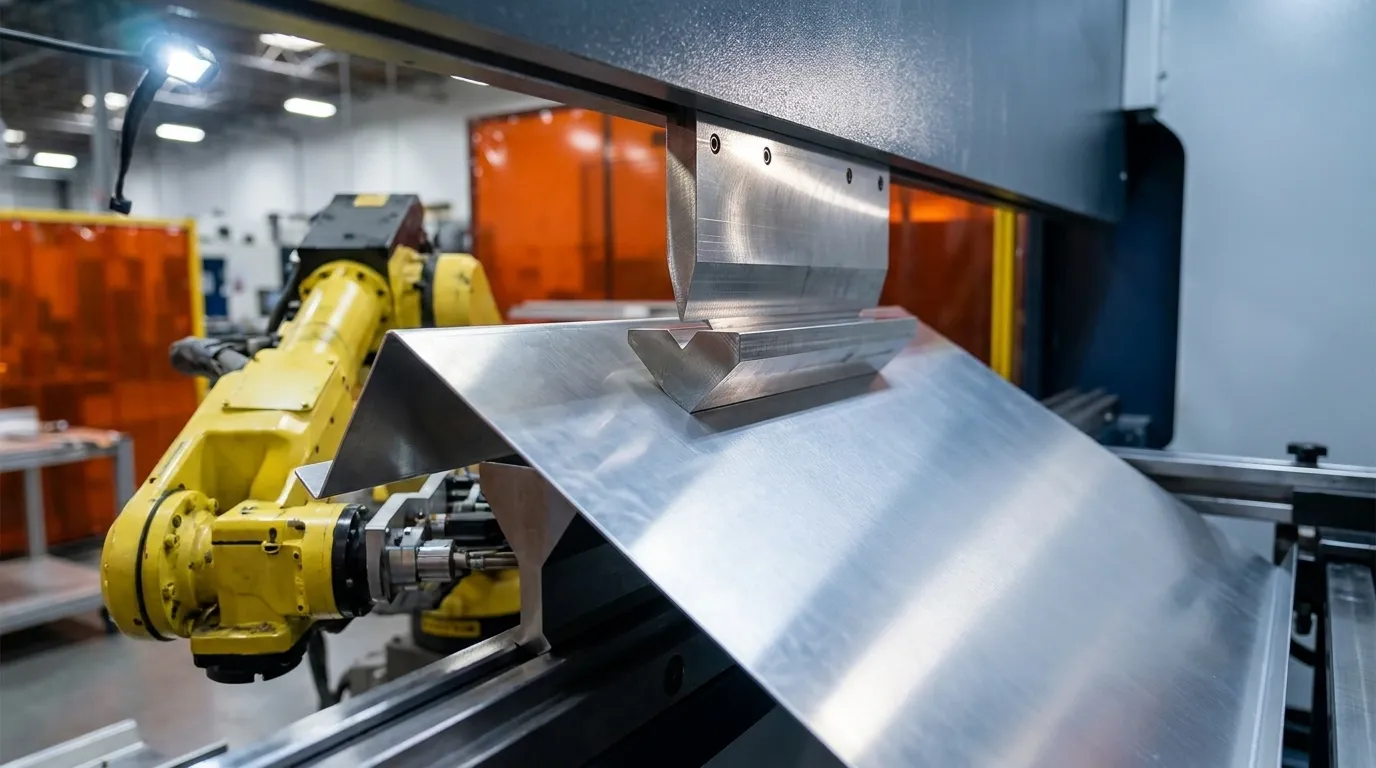

Precision sheet metal fabrication for 42U cabinets requires laser cutting, CNC punching, forming, welding and finishing. Manufacturers that control these processes internally reduce scheduling gaps and quality inconsistencies that arise when steps are outsourced.
One fabrication shop controlling laser cutting, forming, welding, machining and assembly under one roof reduces scheduling gaps, enables faster design adjustments and improves consistency compared with multi-vendor approaches. Low-complexity job shops typically stop at build-to-print sheet metal. They lack the engineering depth for DFM and cannot manage wiring, electromechanical assembly or high-level finishing. This structure forces buyers to manage a fragmented supply chain across multiple vendors for a single finished product.
Fabcon operates vertically integrated facilities that span fabrication, CNC machining, powder coating, wet paint, screen printing and light electromechanical assembly. This integration scope allows a custom 42U enclosure, including hardware insertion, wiring and finishing, to move through a single production environment under one accountable partner.
OEMs increasingly expect fabrication partners to provide DFM guidance in addition to parts production, which enables faster iteration and reduced rework on complex data center enclosures. Fabcon engineering and quoting teams collaborate with customer technical teams before production begins, reviewing drawings, tolerances and materials to improve manufacturability.
Explore Fabcon’s integrated capabilities for 42U cabinet manufacturing with DFM support from the first engagement.
Quality, Compliance and Certification Expectations
Infrastructure-critical programs require documented quality systems, full traceability and alignment with recognized compliance standards. Data center project teams commonly ground lifecycle evaluation in standards from ASHRAE, IEEE, ISO, NFPA, BICSI and NIST. Electrical systems are tested in accordance with IEEE, ANSI and UL standards to verify load behavior, redundancy and voltage stability.
Buyers evaluating server rack manufacturers should request documented material certifications along with scrap rate data from recent projects of comparable scale as part of quality assurance. NEC Article 250 governs grounding channels and busbars in server rack manufacturing, which ensures proper electrical continuity for data center safety.
Fabcon holds ISO 9001:2015 and AS9100D certifications and is ITAR registered. Every stage of the build follows integrated quality systems that support stringent testing, full traceability and compliance with UL and CSA standards. This certification infrastructure supports procurement teams in regulated industries where traceability and documented conformance remain essential.
Review Fabcon’s certified processes for ISO 9001:2015 and AS9100D 42U cabinet manufacturing with full traceability.
Scaling 42U Programs with Reliable Supply Chains
The U.S. data center rack market is projected to grow substantially in the coming years, with hyperscale and large data centers driving volume demand for customized high-density 42U racks. Hyperscale AI data center builders are standing up new facilities in months rather than years, which compresses procurement cycles and turnaround expectations for fabricated parts.
Large global contract manufacturers have the scale but operate with rigid structures. They typically require high minimum volumes, involve long onboarding processes and lack the agility to support evolving bills of materials that characterize high-mix data center programs. Low-complexity job shops lack the infrastructure to scale at all.
Fabcon operates substantial manufacturing space across two U.S. facilities in Southern California. Agile production cells adapt to changing volumes, mixed SKUs and evolving BOMs without the overhead rigidity of large contract manufacturers. This structure supports programs from prototype through mid-volume production while maintaining schedule reliability.
AI expansion has exposed weaknesses of fragmented supply chains, elevating integrated fabrication capabilities to a strategic priority for OEMs supplying power distribution, cooling and server rack systems. U.S.-based manufacturing reduces exposure to international logistics disruptions and supports reshoring objectives for infrastructure-critical programs.
Plan scalable production with a U.S. 42U cabinet manufacturer that operates agile production infrastructure.
Program Value, DFM and Integration Advantages
Total program value extends beyond unit price. The same enclosure can meet identical functional specifications yet cost significantly more due to avoidable design choices such as over-toleranced dimensions, bends too close to holes, poor weld access or inefficient flat patterns. Without DFM, manufacturability issues surface on the shop floor rather than in CAD, which drives scrap, rework and schedule delays that compound across production batches.
Investing in a thorough NPI process rather than rushing to first batch has enabled OEMs to achieve meaningful savings on total program cost for sheet metal enclosures by preventing production rework, scrap and schedule delays. The DFM collaboration described earlier translates to measurable cost impact. Preventing one design iteration can eliminate weeks of schedule delay and thousands of dollars in scrap across a production batch.
Fabcon’s one-PO model consolidates fabrication, finishing and assembly under a single accountable partner. This structure eliminates vendor handoff delays, reduces quality finger-pointing between suppliers and simplifies program management for engineering and operations teams. The fragmented supply chain risks outlined earlier, including project delays, quality issues and increased costs, compound across the program lifecycle, which makes vendor consolidation a strategic cost lever rather than a simple procurement convenience.
Evaluate one-PO integration for custom 42U enclosures with early DFM collaboration and consolidated accountability.
Common Sourcing Pitfalls for 42U Cabinets
Three sourcing pitfalls consistently affect 42U cabinet programs: fragmented vendor bases, late DFM input and underspecified requirements.
Fragmented vendor bases arise when buyers separate metal fabrication, finishing and assembly across multiple suppliers. Each handoff introduces scheduling risk, quality gaps and coordination overhead. Consolidating to a vertically integrated manufacturer removes these handoffs and places accountability with one partner.
Late DFM input occurs when manufacturers receive final drawings without engineering review. Issues discovered after cutting, welding or coating sheet metal are far more costly to correct than issues identified at the design stage. The most common pitfall involves engaging DFM expertise after drawings are finalized rather than at the RFQ stage when design changes carry minimal cost.
Underspecified requirements create misalignment between what buyers need and what manufacturers produce. Programs for AI-dense deployments must define load requirements, cooling compatibility, rail configuration, finishing standards and compliance needs before fabrication begins. Enterprise and edge deployments often require custom airflow curtains or telecom-grade shock isolation, which shows that bespoke mechanical requirements must be documented early.
Collaborate with Fabcon engineering to define specifications before production begins.
Conclusion: Applying the 42U Manufacturer Framework
The six-criteria framework of technical capabilities, integration scope, quality and compliance, scalability and flexibility, supply-chain reliability and total value provides a structured basis for evaluating 42U cabinet manufacturers. Standard off-the-shelf racks and fragmented suppliers increase risk and cost for modern data center programs. Vertically integrated U.S. manufacturers with DFM capability, certified quality systems and agile production infrastructure reduce that risk.
The recommended next step involves an internal needs assessment covering load requirements, cooling compatibility, compliance obligations, volume projections and program timeline. That assessment provides the inputs needed for a productive first consultation with a manufacturer capable of supporting the full program lifecycle.
Fabcon’s vertically integrated facilities, ISO 9001:2015 and AS9100D certifications and DFM-capable engineering team position it as a reliable partner for custom and semi-custom 42U enclosure programs across enterprise, colocation and hyperscale data center applications.
Start a 42U cabinet review with Fabcon’s team to begin the evaluation process for a custom program.
Frequently Asked Questions
What distinguishes a true 42U cabinet manufacturer from a reseller or basic fabricator?
A true manufacturer controls the production process internally, including sheet metal fabrication, finishing and assembly. Resellers source standard products from third-party producers and apply no manufacturing value. Basic fabricators build to print without engineering input, which means they cannot identify design issues before production or manage integration steps like wiring and electromechanical assembly. A full-service manufacturer brings DFM collaboration, in-house finishing and light assembly under one roof, which reduces vendor count and improves program accountability for data center buyers.
Why do standard off-the-shelf 42U racks fall short for AI-driven data center deployments?
Standard racks support traditional server densities and load profiles. AI workloads require cabinets engineered for higher power density, greater structural load capacity, advanced airflow management and liquid-cooling readiness. GPU-dense servers generate more heat and weigh more than standard compute equipment, which requires deeper frames, reinforced structures and custom power distribution configurations. Off-the-shelf products do not accommodate these requirements, and resellers cannot modify them to specification. Custom or semi-custom manufacturing from a vertically integrated partner provides a reliable path for AI-driven programs.
What certifications should data center procurement teams require from a 42U cabinet manufacturer?
ISO 9001:2015 provides the baseline quality management certification and confirms that the manufacturer operates documented processes with consistent quality controls and traceability. AS9100D extends those requirements to aerospace-grade precision and documentation standards, which are increasingly referenced in infrastructure-critical programs. UL and CSA compliance confirm that electrical and structural components meet North American safety standards. ITAR registration applies to programs with defense or government infrastructure requirements. Buyers also benefit from documented material certifications and evidence of first-article inspection processes to verify that quality controls extend to individual program deliverables.
How does DFM collaboration reduce total program cost for custom 42U enclosures?
DFM review identifies manufacturability issues at the design stage before material is cut, formed or welded. Issues discovered after fabrication begins require rework, scrap and schedule recovery that compound across production batches. Early DFM input addresses tolerance stack-up, bend feasibility, hardware insertion access and material utilization before those decisions are locked into production tooling. The result includes fewer prototype iterations, higher first-pass yield and a design that scales consistently from prototype to production volume. Buyers that engage manufacturers with in-house DFM capability at the RFQ stage reduce downstream cost and schedule risk compared with buyers that submit final drawings to build-to-print vendors.
What are the operational advantages of sourcing 42U cabinets from a vertically integrated U.S. manufacturer?
Vertical integration consolidates fabrication, finishing and assembly under one roof, which removes the vendor handoffs that introduce scheduling gaps, quality inconsistencies and coordination overhead in fragmented supply chains. A single accountable partner manages the full build under one purchase order, which simplifies program management for operations and procurement teams. U.S.-based manufacturing reduces exposure to international logistics disruptions, supports reshoring objectives and enables faster response to design changes or volume adjustments. Agile production cells at a mid-scale U.S. manufacturer provide the flexibility to support evolving BOMs and mixed-SKU programs without the high minimums and rigid onboarding requirements of large global contract manufacturers.
