Key Takeaways
- Data center sheet metal enclosures are precision steel or aluminum housings that protect servers, manage airflow and support high-density power loads in hyperscale, colocation and edge facilities.
- Material choices such as cold-rolled steel, zinc-aluminum-magnesium coatings and aluminum directly affect corrosion resistance, EMI shielding and weight for indoor versus edge deployments.
- Perforated panels, blanking panels and custom manifolds enable efficient thermal management, with liquid-cooling chassis now required at AI rack densities.
- Early DFM reviews on bend radii, hole-to-bend distances and tolerance stack-up reduce first-article failures and compress qualification cycles for enclosure programs.
- Fabcon delivers vertically integrated fabrication, finishing and assembly under one roof; partner with Fabcon to streamline the next enclosure project.
How Data Center Use Cases Shape Enclosure Design
Hyperscale operators and edge deployments share a common challenge: enclosures must scale with infrastructure without adding supply chain complexity. Hyperscale facilities frequently target high continuous power levels while smaller edge sites operate in lower ranges. Both environments depend on modular rack-mounted enclosures that support dense cabling, structured airflow and phased deployment.
Rack density is rising sharply and that shift drives new enclosure requirements. Cabinet power density increased during the cloud era and AI training clusters now push higher loads per rack. As a result, enclosure geometry, perforation patterns and structural ratings must handle those thermal and structural demands from the first design iteration.
Modular containment at the cold aisle, hot aisle and row level now defines standard practice in new builds and retrofits. Sheet metal fabricators that understand facility-level airflow strategy design enclosures that integrate with those systems instead of obstructing them, which supports consistent performance as density grows.
Discuss enclosure requirements with Fabcon’s engineering team and align designs with specific facility conditions.
Metal Choices for Data Center Enclosures
Cold-rolled steel remains the standard substrate for indoor server racks and control panels and supports tight tolerances. It requires a protective finish to prevent corrosion in high-humidity environments. Powder coating or galvannealed stock addresses that requirement while maintaining dimensional stability.
Factory-finished coated steel is gaining ground in infrastructure programs. Hot-dipped coated steel held a large share of the coated steel market in 2025 and continues to advance, driven by corrosion resistance and durability requirements. Zinc-aluminum-magnesium alloy coatings are expanding rapidly with new coating lines commissioned across Asia between 2024 and 2025. ArcelorMittal’s Magnelis formulation improves edge corrosion over standard galvanized sheet, which makes it relevant for enclosures in high-humidity or outdoor edge deployments.
Where coated steel still carries too much weight for mobile or remote edge installations, aluminum offers an alternative. Aluminum supports weight reduction and natural corrosion resistance, which benefits edge enclosures exposed to variable environments. Stainless steel grades such as 304 and 316 serve applications that require superior corrosion resistance and clean-edge finishes in sensitive environments.
Material selection also affects EMI shielding and grounding strategy. Powder coating is electrically insulating, so grounding points must be masked or treated with chromate conversion coating to maintain a continuous Faraday cage across the enclosure.
Review material and coating trade-offs with Fabcon’s team to match substrates with deployment conditions.
Airflow, Cooling and Thermal Control Features
Modern data centers operate at high power densities per square foot and cooling consumes a significant share of total electricity. Enclosure design directly influences how efficiently that cooling load is managed across racks and rows.
Perforated panels and blanking panels act as primary airflow control tools at the enclosure level. Precision-cut blanking panels fill unused rack spaces so air flows through servers rather than around them. Perforated floor tiles and vented panels use calculated hole patterns to direct the correct volume of conditioned air into the cold aisle.
Passive convection strategies build on that structured airflow. Bottom air inlets and top exhaust louvers pull heat vertically through the enclosure. For higher-density loads, cutouts align with internal fans to form directional air tunnels that move air across the hottest components.
At AI rack densities, air cooling alone cannot manage the thermal load. Custom chassis manifolds and secondary-loop infrastructure for direct-to-chip cooling rely on precise forming and welding to create leak-proof enclosures that integrate with liquid cooling architectures.
Security, Cable Management and Sealing Details
Physical security in data center enclosures centers on locking mechanisms and access control. Three- and four-point locking systems are standard on 19-inch EIA-310-E compliant racks and provide door rigidity and tamper resistance across the full frame height.
Cable management functions as a structural design problem, not an afterthought. Routing channels, cable trays and pass-through openings must be sized and positioned during the fabrication design phase. Pre-assembled cable tray systems delivered as complete sub-assemblies reduce on-site labor and keep routing paths aligned with rack mounting positions.
Gasketed access doors with continuous U-channel grooves allow silicone gaskets to compress evenly and support higher IP ratings where dust or moisture ingress is a concern. Continuous CMT welding on exterior shells creates sealed seams with minimal distortion and supports those IP ratings at the enclosure body.
How Fabcon Builds Data Center Enclosures
Precision data center enclosures move through a defined fabrication sequence that protects tolerances and finish quality. Laser cutting and CNC punching create clean, accurate openings for airflow, cabling and access panels while minimizing material waste. Large-format fiber laser cutting delivers faster speeds, cleaner edges and greater precision for tight-tolerance assemblies including power distribution housings and rack structures.

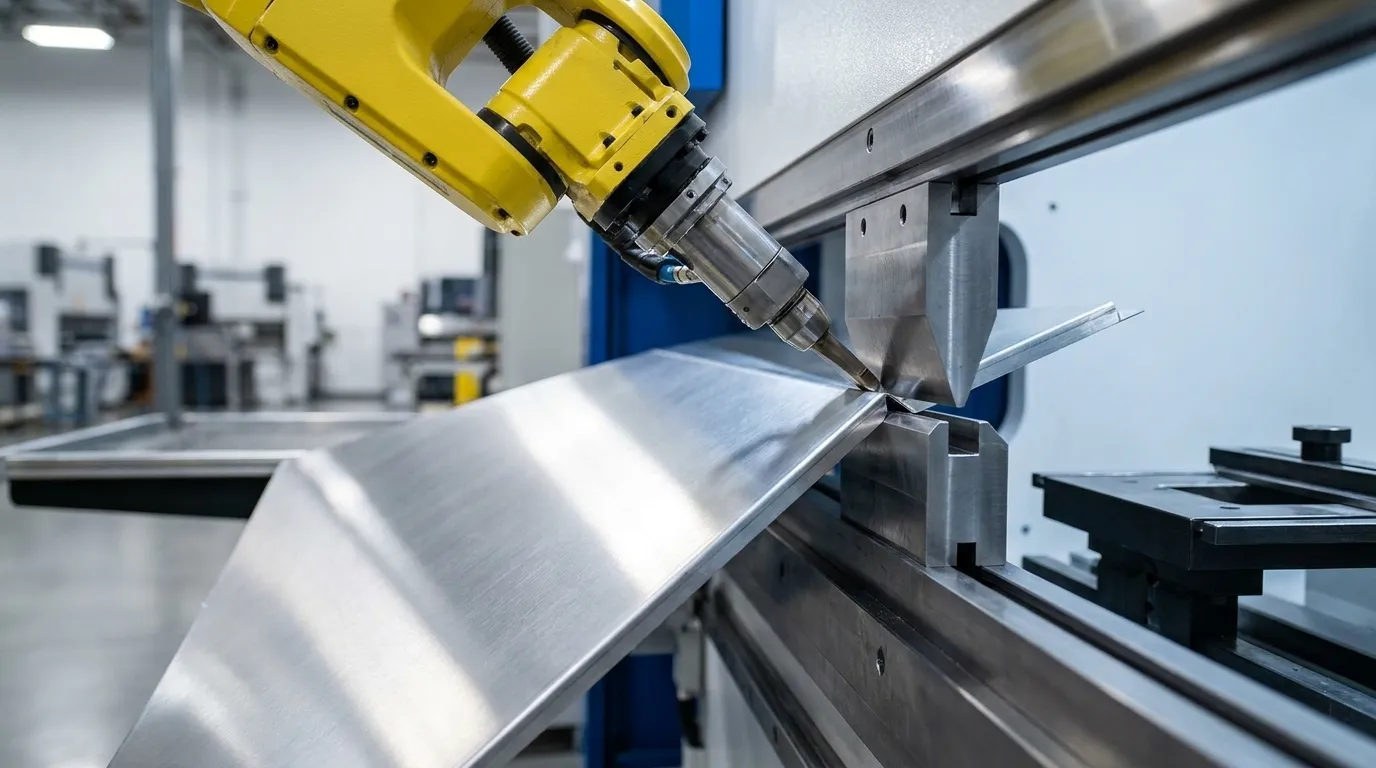

Press brake forming follows cutting and establishes the enclosure geometry. Uniform bending across frames, doors and mounting brackets is critical for alignment in multi-rack assemblies. MIG welding handles structural joints in heavy-duty components. TIG welding produces clean, sealed seams in visible structures and airflow-dependent designs.
CNC machining accurately places holes, threads and slots for mounting electrical, mechanical and cooling components. Finishing, typically powder coating, protects against corrosion and wear. Standard powder coating adds measurable thickness per side, so designers must specify whether CAD dimensions are pre- or post-finish to avoid binding in tight-tolerance assemblies.
Fabcon’s in-house process stack covers laser cutting, CNC punching, forming, certified welding, CNC machining, powder coating, wet paint and light electromechanical assembly under one roof on one purchase order.
Request a fabrication capability review and quote from Fabcon for upcoming enclosure programs.
DFM Practices That Protect Cost and Schedule
A large share of a product’s cost is determined during the design phase, and early DFM application reduces manufacturing cost and risk. For data center enclosures, several design decisions carry the most impact.
Bend radius is the most common source of first-article failures because improper radius specifications cause cracking during forming. Inside bend radius should equal material thickness for standard steel. Harder alloys require a larger radius to prevent cracking under the same forming pressure. Minimum flange height must allow the part to span the V-die properly so flanges do not slip during forming.
Hole-to-bend distance controls distortion around features. Maintaining a minimum hole-to-bend distance of inside bend radius plus material thickness prevents holes from deforming during forming. Mass punching large ventilation areas in thin stock causes panel warping. Localized perforation patterns or thicker stock resolve that warping while preserving airflow.
Tolerance stack-up in multi-part assemblies requires explicit analysis, especially across tall racks and multi-bay systems. DFM reviews that check bend feasibility, tolerance stack-up and hardware insertion access before release reduce first-article rejection rates and shorten qualification cycles. Sheet metal enclosures typically follow ISO 2768-m tolerances for standard CNC operations, with tighter tolerances available on precision requests.
EMI shielding requires treating the enclosure as a continuous Faraday cage. Ventilation holes must stay smaller than the target wavelength and conductive gaskets at access panels maintain shielding continuity. Grounding points must be masked before powder coating so electrical paths remain intact.
Fabcon’s engineering team engages at the DFM stage, reviewing drawings, tolerances and material selections before production begins to reduce rework and align designs with production capabilities.
How to Evaluate Enclosure Suppliers
Engineering and procurement teams evaluating enclosure suppliers can assess five areas: certifications, in-house process coverage, prototype-to-production scalability, DFM collaboration depth and vendor consolidation potential.
Certifications establish baseline quality and traceability. Suppliers should hold ISO 9001:2015 at minimum. For programs with aerospace-adjacent requirements or strict traceability mandates, AS9100D certification adds a documented quality layer. Alignment with EIA-310D, ASHRAE and NEBS or seismic standards matters for racks deployed in mission-critical or seismically active facilities.
In-house process coverage determines how many handoffs a program requires. A supplier that controls fabrication, finishing and assembly internally removes the coordination delays and quality finger-pointing that occur when those steps are split across vendors. This vertical integration supports consistent quality across complex builds.
Scalability from prototype to mid-volume often exposes supplier limits. Large contract manufacturers impose high minimums and rigid onboarding. Small job shops lack the infrastructure to scale. Fabcon’s agile production cells adapt to changing volumes, mixed SKUs and evolving bills of materials without the overhead constraints of large contract manufacturers.
DFM collaboration depth separates transactional vendors from engineering partners. Applying DFM early in the design phase shapes enclosures for easier, faster and less expensive production. Suppliers that engage at the design stage reduce rework, compress timelines and improve first-article success rates.
Vendor consolidation reduces total program risk. One purchase order covering fabrication, finishing and assembly shortens lead times, simplifies quality accountability and reduces the coordination overhead that fragments supply chains. Fabcon holds ISO 9001:2015 and AS9100D certifications, is ITAR registered and maintains full material traceability across every build stage.
Evaluate Fabcon’s integrated capabilities and request a program quote for upcoming data center builds.
FAQ
What types of enclosures do data centers typically use?
Data centers use several enclosure types depending on function and deployment context. Open-frame racks provide maximum airflow and accessibility for high-density compute. Enclosed cabinets with perforated doors and blanking panels support structured airflow management in colocation and enterprise environments. Modular containment systems, including cold aisle and hot aisle enclosures, isolate supply and exhaust air at the row or aisle level. Edge deployments often use ruggedized, sealed enclosures rated for variable environmental conditions. Custom chassis and manifold assemblies support liquid cooling integration in AI and hyperscale facilities.
What fabrication processes are used to manufacture data center sheet metal enclosures?
The standard fabrication sequence begins with laser cutting or CNC punching to create accurate openings for airflow, cabling and access. Press brake forming establishes the enclosure geometry. MIG and TIG welding join structural components and create sealed seams where IP ratings or liquid cooling integration require them. CNC machining places precision holes, threads and slots for hardware mounting. Finishing, typically powder coating, protects against corrosion and wear. Light electromechanical assembly, including hardware insertion and wiring, completes the build. Suppliers with all of these capabilities in-house eliminate the handoffs that extend lead times and introduce quality variation.
How does DFM collaboration reduce cost and lead time for enclosure programs?
Design-for-manufacturability review identifies problems before production begins. Bend radius violations, hole-to-bend clearance issues, tolerance stack-up conflicts and hardware edge-distance failures cost far less to resolve in CAD than on the production floor. Early DFM engagement reduces first-article rejection rates, shortens qualification cycles and improves material yield through optimized nesting. For programs moving from prototype to mid-volume, DFM alignment also ensures that design decisions made at low volume remain economically viable at scale. Suppliers that embed engineering collaboration into their quoting process deliver that value without requiring a separate engagement.
What certifications should a data center enclosure supplier hold?
ISO 9001:2015 is the baseline quality management certification and establishes documented process control and traceability. AS9100D adds aerospace-grade quality requirements relevant to programs with strict traceability, first-article inspection and configuration management needs. ITAR registration is required for programs with defense or dual-use components. UL and CSA compliance supports electrical safety requirements for enclosures housing power distribution equipment. Alignment with EIA-310-E governs 19-inch rack dimensional standards. ASHRAE TC 9.9 guidelines inform thermal management design. Suppliers should provide certification documentation and traceability records as part of standard program deliverables.
How does vendor consolidation affect data center enclosure procurement?
Fragmented vendor bases create compounding risks. When fabrication, finishing and assembly are split across multiple suppliers, each handoff introduces scheduling dependencies, quality accountability gaps and coordination overhead. A single supplier covering all three disciplines reduces purchase order complexity, compresses the overall production timeline and provides a single point of accountability for quality and delivery. For programs with evolving bills of materials or mixed SKU requirements, consolidated sourcing also reduces the administrative burden of managing multiple supplier relationships through design changes and volume transitions.
Conclusion: Turning Requirements into an Enclosure Program
Evaluating data center sheet metal enclosures works best with a structured approach across material selection, thermal design, fabrication process coverage, DFM collaboration and supplier qualification. The frameworks in this guide support internal needs assessment and focused supplier conversations.
The next step is translating program requirements into a supplier evaluation. Teams can document rack density targets, cooling architecture, certification requirements and volume trajectory before engaging vendors. That preparation supports clear requests for evidence of in-house process coverage, DFM collaboration practices and quality certifications.
Fabcon combines vertically integrated fabrication, finishing and light electromechanical assembly with ISO 9001:2015 and AS9100D certifications, early DFM collaboration and agile production cells, all within United States facilities. One partner, one purchase order and consistent quality from first article through production.
Start a conversation with Fabcon’s engineering and manufacturing team to align enclosure design, DFM and production under one program.
