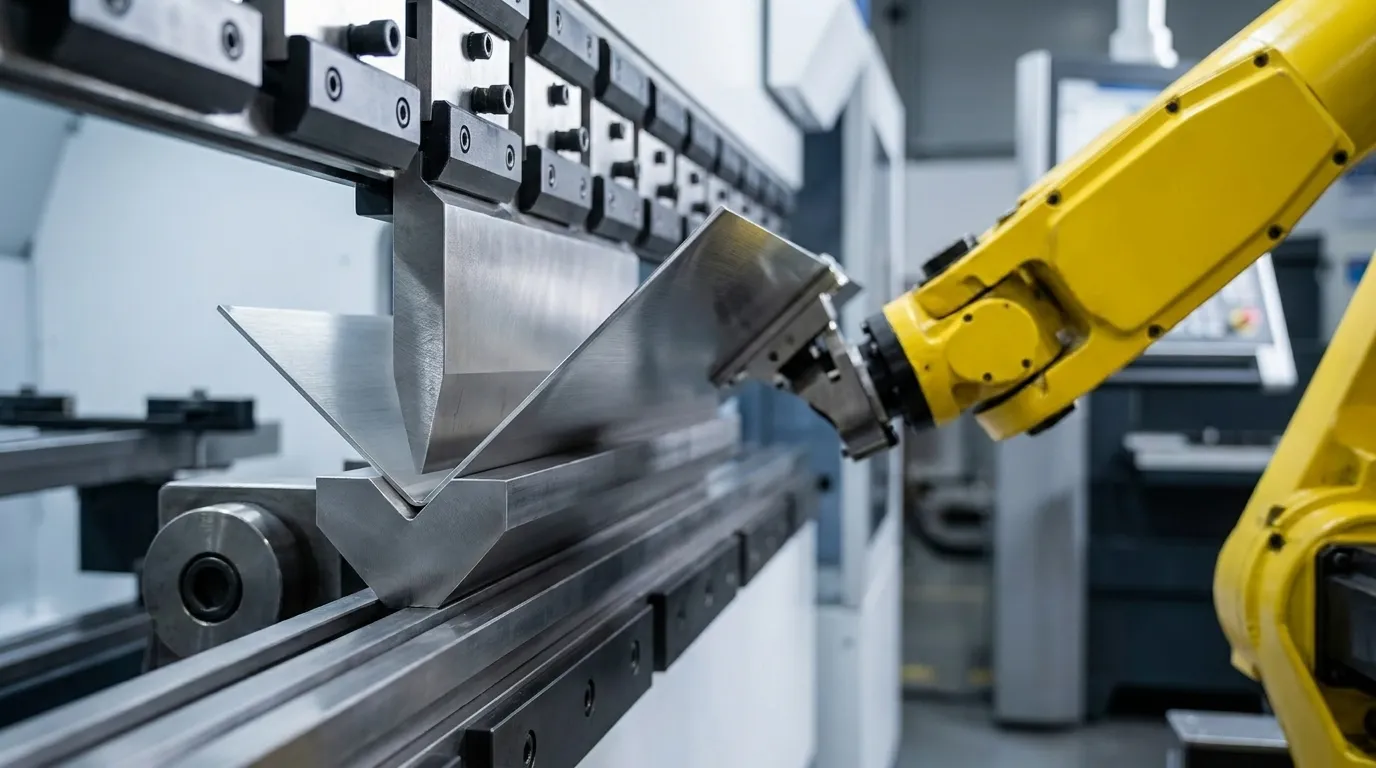

Key Takeaways for Sheet Metal DFM
- DFM analysis for sheet metal evaluates geometry, tolerances, materials and finishing against fabrication capabilities to cut rework and improve first-pass yield.
- Seven core rules guide manufacturable designs: material selection, bend radius, hole placement, tolerances, bend sequencing, flat-pattern accuracy and finishing constraints.
- Early DFM collaboration reduces scrap, inspection time and design changes by aligning designs with standard tooling and process limits.
- Integrated partners that handle fabrication, finishing and assembly deliver DFM reviews that reflect the entire build process.
- Partner with Fabcon for a complimentary DFM review that protects timelines and improves manufacturability from day one.
Rule 1 – Material and Gauge Selection for Reliable Supply
Guideline: Specify standard-stock gauges and materials that align with the fabricator’s inventory and process capabilities.
Standard gauge thicknesses improve material availability, shorten lead time and expand sourcing options compared with non-standard gauges. The EV sector is increasing demand for lightweight aluminum alloys and high-strength steels with tight tolerances, so early material commitment becomes a DFM priority.
Before: A design specifies a non-standard aluminum thickness. The fabricator must source custom stock, which adds procurement time and cost.
After: The design is revised to a standard gauge. Material ships from existing inventory and moves directly to the press brake.
Fabcon’s standard-stock approach and in-house engineering team review material specifications during the DFM phase and align gauge selection to available inventory before a single part is cut.
Rule 2 – Bend Radius and Relief for Crack-Free Parts
Guideline: Set inside bend radii at or above the material- and temper-specific minimum and include bend relief at every flange termination.
The industry standard inside bend radius for most precision sheet metal parts aligns with common press brake tooling for material thicknesses to 0.125 inches. A bend radius smaller than the calculated minimum often causes cracking on the outer tensile surface, which produces scrapped parts and higher manufacturing costs.
Designers add a safety factor above the theoretical minimum for critical applications to account for material variation and tooling wear. A design that follows the SOLIDWORKS default bend radius may require non-standard tooling that increases costs and lead time.
Before: A stainless-steel enclosure is designed with a tight inside radius matching material thickness. Parts crack at the outer surface during forming and are scrapped.
After: The radius is increased to meet the material’s K-factor minimum with a safety margin. First-pass yield improves and no custom tooling is required.
Rule 3 – Hole Sizing and Placement That Survive Forming
Guideline: Keep holes and slots a sufficient distance from edges and bend lines to prevent distortion during forming.
Hole-to-edge and hole-to-bend spacing should be at least 2 times material thickness to avoid distortion that forces secondary cleanup operations. Placing holes and slots at least 3 times the material thickness away from bend lines is recommended, because features located closer distort during forming as the surrounding material stretches and compresses.
Before: Mounting holes are placed close to a bend line. After forming, the holes are oblong and fasteners cannot seat correctly, which requires rework.
After: Holes are repositioned to meet minimum spacing. Parts pass first-article inspection without secondary operations.
When spacing requirements cannot be met, fabricators often resolve the issue by adjusting the forming sequence instead of changing the design. Early DFM collaboration makes that adjustment possible.
Work with Fabcon’s engineering team to review hole placement before production.
Rule 4 – Tolerance Strategy That Controls Cost
Guideline: Apply tight tolerances only to functional interfaces and use standard process tolerances everywhere else.
Overly tight tolerances applied broadly on sheet metal parts add setups, slower feeds and inspection time. To control these costs, tolerances should match achievable sheet metal process capabilities, with tight limits reserved for dimensions that affect function.
Before: A drawing applies a tight tolerance across all features. Every dimension triggers a full inspection cycle and throughput slows.
After: Tight tolerances are limited to mating surfaces and critical interfaces. Inspection time drops and throughput improves.
Fabcon’s ISO 9001:2015 and AS9100D certified quality system provides full traceability, so tight tolerances on critical features are verified and documented without over-inspecting the entire part.
Rule 5 – Bend-Sequence Planning Before Release
Guideline: Plan the bend sequence before finalizing the design to confirm that every bend is accessible with standard press-brake tooling.
Involving the fabricator in an early manufacturability review catches bend-related issues before material is cut and avoids downstream rework, scrap and schedule slippage. Minimizing bend count and complexity reduces press-brake setups and operator cycle time, and those costs scale with each bend.
Before: A deep-channel part requires a late-stage bend that the press-brake punch cannot reach without a custom setup. Production stalls.
After: The sequence is reviewed during DFM. A minor geometry change allows all bends with standard tooling and no additional setups.
Rule 6 – Flat-Pattern Accuracy for Formed Fit
Guideline: Account for material stretch and bend compensation in the flat pattern so formed dimensions match the CAD model.
Sheet metal stretches and compresses during bending, so a hole that is perfectly round in the flat pattern may emerge slightly oblong after forming. Designs that ignore this material movement produce parts whose features do not match CAD expectations.
Before: A flat pattern is generated without bend compensation. The formed part is dimensionally short at a critical mating flange and requires a remake.
After: The flat pattern applies the correct K-factor for the material and radius. The formed part matches the CAD model on the first run.
Steel and aluminum price volatility pressures fabricators to prioritize material efficiency and nesting optimization, so flat-pattern accuracy becomes a direct cost-control lever.
Rule 7 – Finishing and Assembly Constraints at the Final Stage
Guideline: Design parts to accommodate coating, hardware insertion and light electromechanical assembly without secondary rework or re-fixturing.
Cosmetic finish callouts on non-visible surfaces often add secondary operations with no functional benefit. Surface finishes must be specified as applicable, and parts must accommodate these treatments without affecting overall fit and function.
Before: A full cosmetic finish is called out on internal surfaces. Masking and re-coating add time and cost with no functional benefit.
After: Finish callouts are limited to external cosmetic surfaces. Secondary operations are eliminated and the part moves directly to assembly.
Fabcon’s in-house finishing capabilities, including powder coat, wet paint, screen printing, CARC and mil-spec coating, combined with light electromechanical assembly, eliminate vendor handoffs that cause quality finger-pointing and schedule slippage.
Reduce finishing and assembly rework with a single accountable partner.
DFM Report Contents Across the Seven Rules
A DFM report from an integrated fabrication partner documents findings across all seven rule areas. It includes a summary of design risks, recommended changes and the rationale tied to fabrication process capabilities.
Applying DFM before prototyping yields a DFM-optimized first prototype that reduces iteration cycles and accelerates first-article approval for sheet metal enclosures. A complete DFM report typically covers material and gauge confirmation, bend radius and relief findings, hole placement flags, tolerance review, flat-pattern notes and finishing and assembly constraints.
Fabcon’s engineering and quoting teams review drawings, tolerances and materials together and produce manufacturing routers and work instructions tailored for the production floor. Because all stages are integrated, the DFM report reflects the full build, not just the metal.
Downloadable DFM Analysis Checklist for Design Review
The following checklist consolidates the seven DFM rules into a single pre-submission review tool, organized by the same categories covered in the report. Use this checklist during design review to confirm manufacturability before submitting for fabrication.
Material and Gauge
- Specified gauge matches standard stock
- Material grade confirmed for application environment
- Grain direction noted for bend orientation
Bend Radius and Relief
- Inside bend radius meets or exceeds material K-factor minimum
- Safety margin applied for critical bends
- Bend relief included at all flange terminations
Hole Sizing and Placement
- Holes are at least 2× material thickness from edges
- Holes are at least 3× material thickness from bend lines
- Standard hole sizes used throughout
Tolerance Strategy
- Tight tolerances limited to functional interfaces
- Standard process tolerances applied to non-critical features
- Formed angle tolerances match press-brake capability
Bend Sequence
- All bends accessible with standard tooling
- Bend count minimized
- Sequence reviewed for tooling collision risk
Flat Pattern
- Bend allowance applied using correct K-factor
- Hole positions compensated for material stretch
- Nesting reviewed for material efficiency
Finishing and Assembly
- Cosmetic finish callouts limited to visible surfaces
- Hardware insertion holes sized for press-fit requirements
- Self-locating features included for assembly alignment
Purpose of DFM in Sheet Metal Programs
The purpose of DFM is to align a product design with real-world constraints of the manufacturing process before production begins. In sheet metal fabrication, this means evaluating material selection, bend geometry, hole placement, tolerances and finishing requirements against what press brakes, laser cutters and coating lines can reliably produce.
DFM-optimized designs reduce iteration cycles and improve first-pass yield. Common DFM cost drivers for sheet metal include cycle time, setup time, tooling and fixturing, scrap and yield, secondary operations and inspection effort. Addressing these drivers early prevents them from compounding at volume. For engineering teams in data centers, aerospace, energy storage and medical devices, early DFM collaboration provides a reliable way to protect launch timelines and reduce total program cost.
Common Sheet-Metal DFM Mistakes
The most common mistakes fall into a predictable set of categories. Specifying non-standard gauges or material grades creates sourcing delays and limits fabricator options. Setting bend radii too tight for the material, particularly in harder aluminum grades or stainless steel, causes cracking and scrap. Placing holes too close to bend lines produces distorted features that fail first-article inspection.
Applying tight tolerances across all features, rather than only at functional interfaces, adds inspection burden without improving part performance. Ignoring flat-pattern stretch compensation produces formed parts that do not match CAD dimensions. Calling out cosmetic finishes on non-visible surfaces adds masking and secondary operations with no functional benefit. Failing to design for hardware insertion or light assembly alignment creates integration problems that surface only after fabrication is complete.
Each of these mistakes is preventable with a structured DFM review conducted before material is cut.
How to Read a DFM Report
A DFM report is organized by risk area, not by part feature. The summary section flags high-priority issues that would cause scrap, rework or tooling costs if unaddressed. Each flagged item lists the specific design feature, the fabrication constraint it conflicts with and a recommended change.
Readers review bend radius findings first, because these carry the highest scrap risk. Next come hole placement flags, tolerance callouts and flat-pattern notes. Finishing and assembly constraints appear last but affect the full build cost, not just the metal fabrication stage.
For each finding, teams confirm whether the recommended change affects form, fit or function. Changes that affect only manufacturability, such as adjusting a bend radius to match standard tooling, can typically be approved quickly. Changes that affect mating interfaces or assembly require coordination with the broader engineering team. A DFM report from an integrated partner like Fabcon covers fabrication, finishing and assembly in a single document, so all constraints are visible before any design change is committed.
Conclusion and Next Step for Sheet Metal DFM
DFM analysis for sheet metal provides a reliable method to prevent rework, protect first-pass yield and reduce total program cost. The seven rules, covering material and gauge selection, bend radius and relief, hole placement, tolerance strategy, bend-sequence optimization, flat-pattern accuracy and finishing and assembly constraints, address the root causes of fabrication issues before they reach the production floor.
Fabcon’s vertically integrated model means engineering, fabrication, finishing and light electromechanical assembly are reviewed together from the start. ISO 9001:2015 and AS9100D certified quality systems provide full traceability across every stage of the build. One partner manages one accountable process with no vendor handoffs.
Submit a design for a complimentary DFM review.
Frequently Asked Questions
Difference Between a DFM Review and a Standard Drawing Review
A standard engineering drawing review checks whether a design is correctly documented, with dimensions, tolerances and material callouts present and internally consistent. A DFM review goes further and evaluates whether the design can be fabricated reliably and cost effectively with available processes and tooling. For sheet metal, this includes checking bend radii against material ductility, confirming hole placement relative to bend lines, reviewing tolerance callouts against press-brake and laser-cutting capabilities and assessing finishing and assembly constraints. A DFM review catches issues that a drawing review misses because it requires fabrication process knowledge, not just drafting standards.
Best Timing for DFM Analysis in the Product Cycle
DFM analysis works best at the concept or early detailed design stage, before tooling is committed and before a prototype is cut. At that point, geometry changes carry no material cost and minimal engineering rework. DFM analysis conducted after a first prototype has been built still adds value, but changes become more expensive as the design matures and production tooling is finalized. For programs moving from prototype to production, a second DFM review at the production design stage is a standard practice that catches issues introduced during design iteration.
Impact of Vertical Integration on DFM Quality
A fabricator that controls fabrication, finishing and assembly in one integrated operation can review all three stages simultaneously. A job shop that performs only metal fabrication will flag bend radius and hole placement issues but cannot assess how a coating process affects hardware insertion clearances or how a wiring harness routes through a formed enclosure. Vertical integration means the DFM report reflects the full build, not just the metal stage, which reduces the risk of issues surfacing during finishing or assembly after fabrication is complete.
Certifications for Sheet Metal DFM in Regulated Industries
ISO 9001:2015 is the baseline quality management certification for sheet metal fabrication and covers documented processes, traceability and corrective action systems. AS9100D extends those requirements for aerospace and defense applications and adds risk management, configuration control and first-article inspection requirements. For programs that involve export-controlled technology, ITAR registration is required. Medical device and energy storage programs may also require UL or CSA compliance for finished assemblies. A partner holding these certifications provides the documentation and traceability that procurement and quality teams in regulated industries require.
Information Needed for a Useful DFM Report
A complete DFM review requires a 3D CAD model in a native or neutral format, a 2D drawing with all tolerances and material callouts, a bill of materials if the part is an assembly and any finish or coating specifications. If the part interfaces with other components, mating drawings or assembly context help the engineering team assess fit and alignment. Programs with specific regulatory requirements, such as AS9100D traceability or UL compliance, should include those requirements in the submission so the DFM review addresses them from the start.
